Cisco CISCO1720

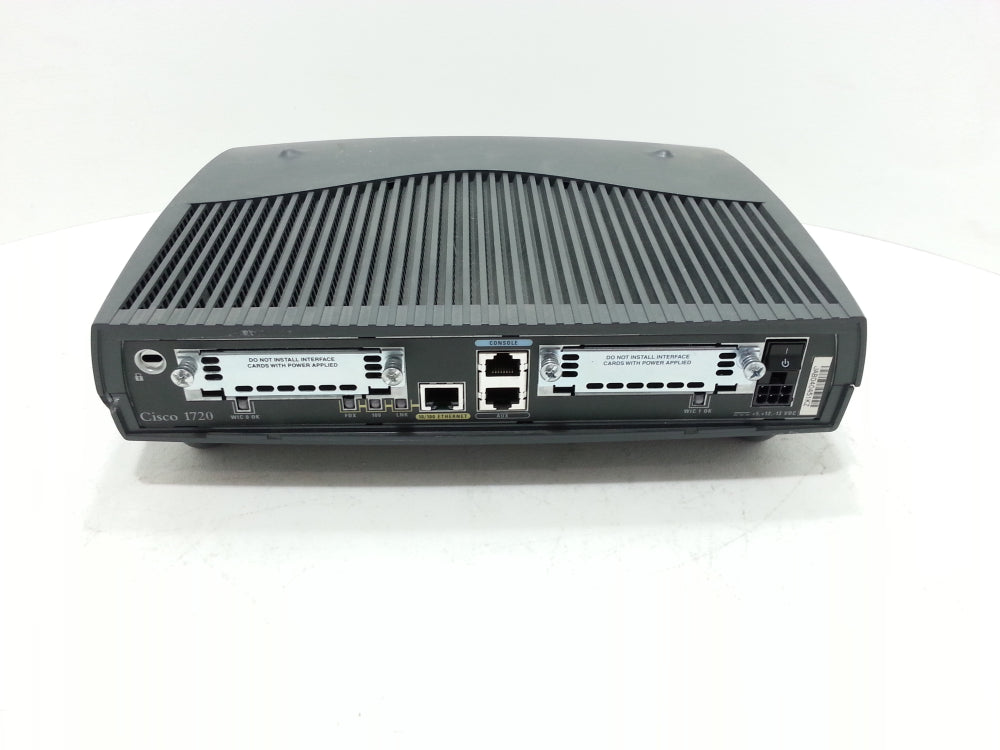

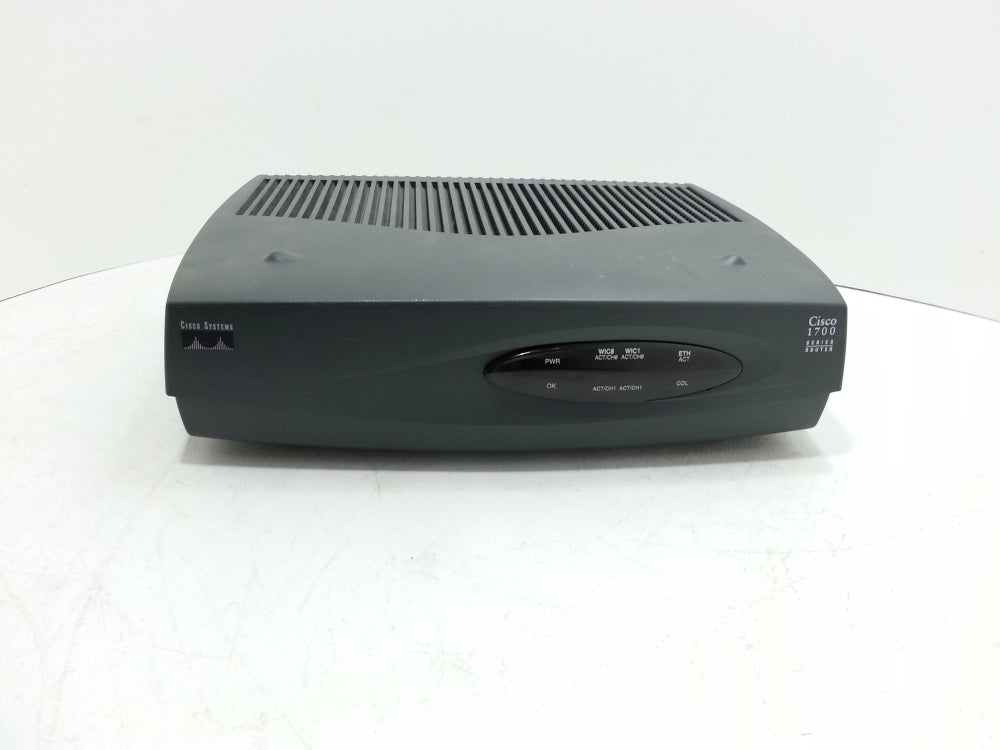

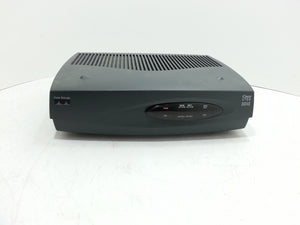

Cisco 1720 Router with power supply

SPECS

GENERAL
Flash Memory: 8 MB (installed) / 16 MB (max)
Status Indicators: Collision status, port transmission speed, port duplex mode, power, test mode, link/activity

EXPANSION / CONNECTIVITY
Installed Modules Qty: 0 (installed) / 3 (max)

POWER DEVICE
Voltage Required: AC 100/240 V
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 15 Watt
Type: external power adapter
Voltage Provided: + 5, ± 12 V

NETWORKING
Form Factor: desktop
Type: Router
Connectivity Technology: wired
Data Link Protocol: Ethernet, Fast Ethernet
Network / Transport Protocol: TCP/IP
Features: auto-sensing per device, full duplex capability, modular design
Remote Management Protocol: HTTP, SNMP, Telnet
Communication Mode: full-duplex, half-duplex
Data Transfer Rate: 100 Mbps

PROCESSOR
Type: MPC860T
Installed Qty: 1
Manufacturer: Motorola
Clock Speed: 48 MHz

POWER
Compliant Standards: EN 60950, UL 1950

INTERFACE PROVIDED
Gender: female
Connector Qty: 1
Type: management, network, serial
Interface: Ethernet 10Base-T/100Base-TX, auxiliary, console
Qty: 1
Connector Type: 9 pin D-Sub (DB-9), RJ-45

CHASSIS
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 3

RAM
Installed Size: 32 MB
Max Supported Size: 48 MB

FLASH MEMORY
Max Supported Size: 16 MB

ENVIRONMENTAL PARAMETERS
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 85%

DIMENSIONS & WEIGHT
Width: 11.2 in
Depth: 8.7 in
Height: 3.1 in
Weight: 2.65 lbs
