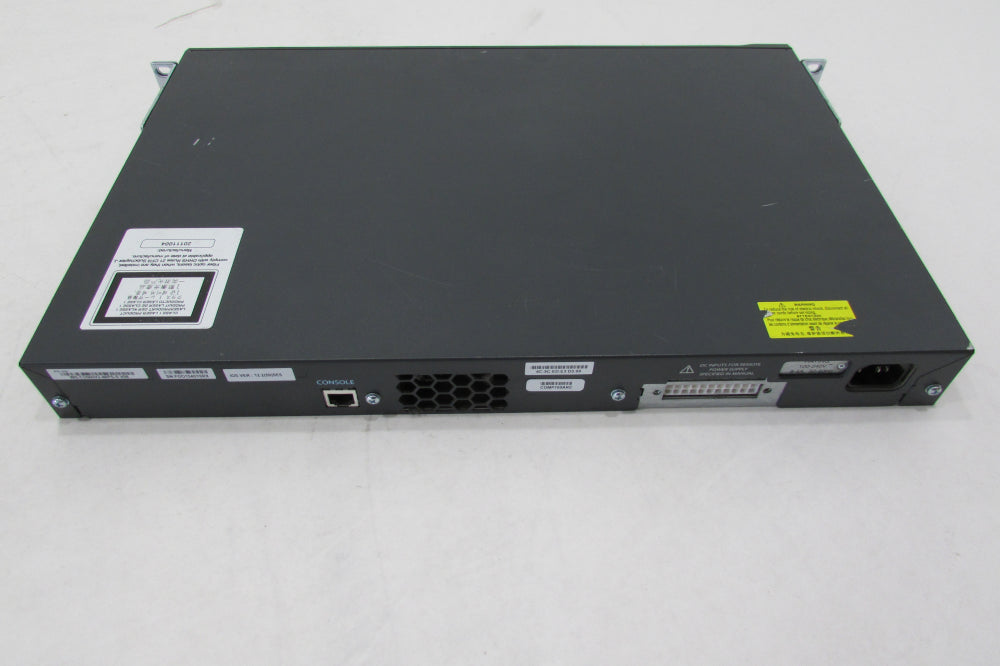

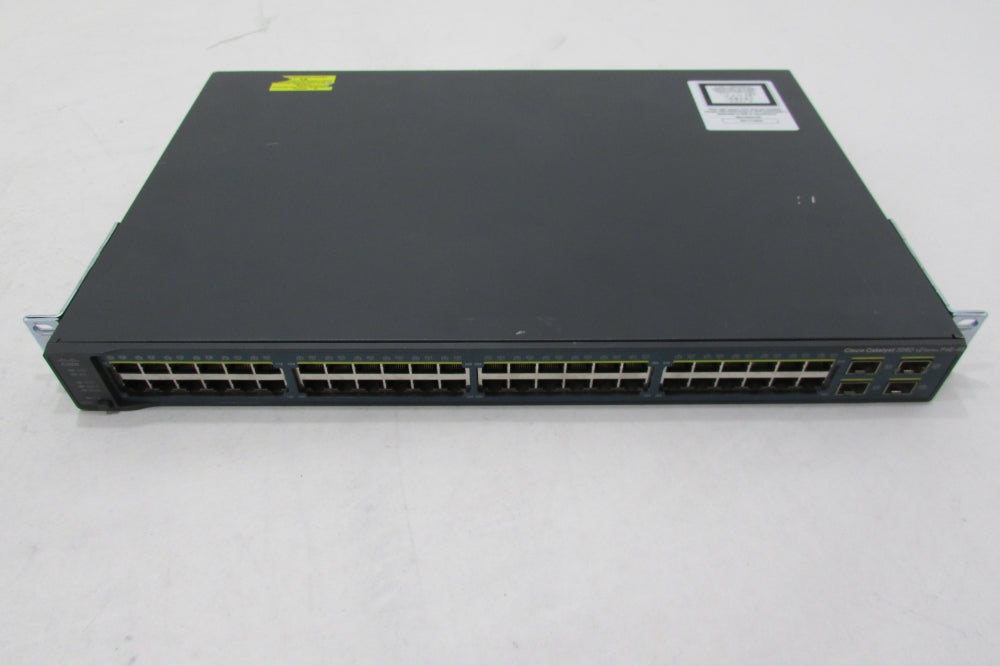

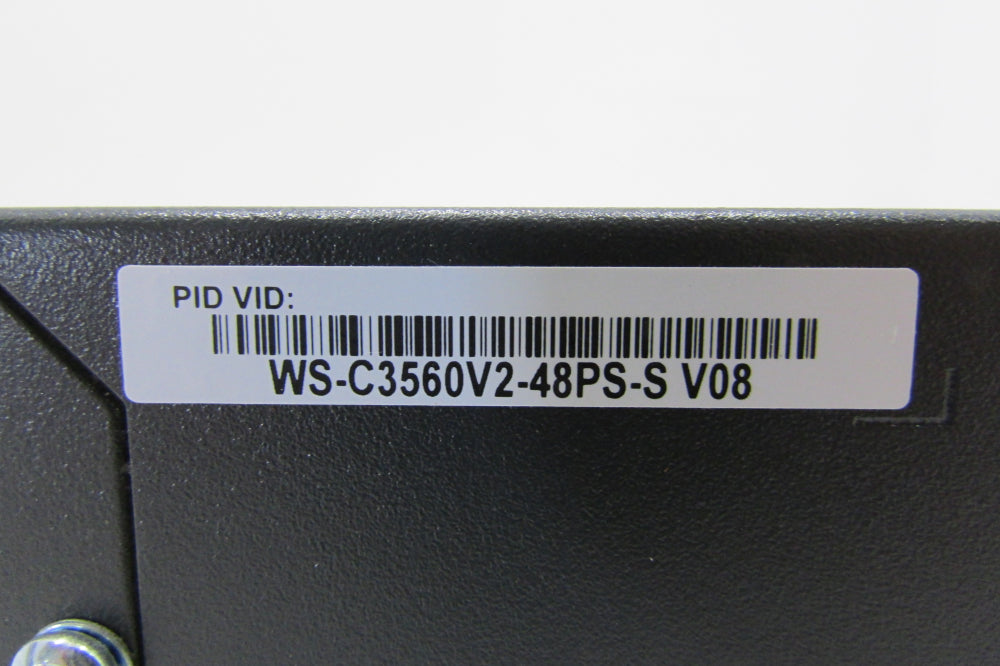

Cisco WS-C3560V2-48PS-S

  • $45.00
    Unit price per

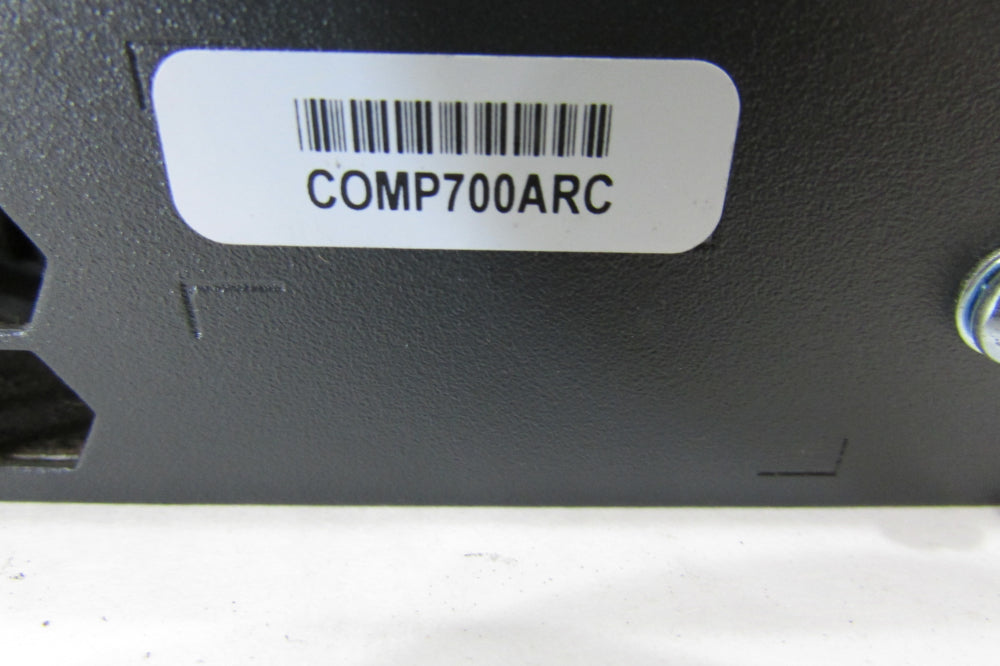

Cisco WS-C3560V2-48PS-S, COMP700ARC Catalyst 3560V2 48 10/100 PoE + 4 SFP + IPB (Standard) Image Catalyst 3560 v2 Series Switches

• 48 Ethernet 10/100 ports and 4 SFP-based Gigabit Ethernet ports
• 370W available for PoE, allowing full 15.4W for up to 24 ports
• 1RU fixed-configuration, multilayer switch
• IPv6
• IP Base software feature set

GENERAL
Enclosure Type: Rack-mountable 1U
Subtype: Fast Ethernet
Ports: 48 x 10/100 + 4 x SFP
Authentication Method: Kerberos, RADIUS, Secure Shell v.2 (SSH2), TACACS+
MAC Address Table Size: 12K entries
Authentication Method: Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Status Indicators: Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), link/activity
Routing Protocol: RIP-1, RIP-2, static IP routing

POWER DEVICE
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Type: internal power supply

NETWORKING
Cabling Type: Ethernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size: 12K entries
Subcategory: network hubs and switches
Subtype: Fast Ethernet
Form Factor: rack-mountable
Type: Switch
Connectivity Technology: wired
Advanced Switching: Layer 3
Features: Access Control List (ACL) support, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Intrusion Detection System (IDS), Jumbo Frames support, MAC address filtering, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Time Domain Reflectometry (TDR), Trivial File Transfer Protocol (TFTP) support, VLAN support, auto-negotiation, auto-sensing per device, auto-uplink (auto MDI/MDI-X), layer 3 switching, load balancing
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports Qty: 48
Manageable: Yes
Routing Protocol: RIP-1, RIP-2, static IP routing
Switching Protocol: Ethernet
Remote Management Protocol: RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet
Communication Mode: full-duplex, half-duplex

MISCELLANEOUS
MTBF: 206041 hour(s)
Height (Rack Units): 1 m

POWER
Features: Redundant Power System (RPS) connector
Features: Redundant Power System (RPS) connector

INTERFACE PROVIDED
Qty: 1, 24, 4
Connector Type: SFP (mini-GBIC)

ENVIRONMENTAL PARAMETERS
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 85%

DIMENSIONS & WEIGHT
Width: 17.4 in
Depth: 11.6 in
Height: 1.7 in
Weight: 11.02 lbs

SOFTWARE
Type: Cisco IOS IP Base
