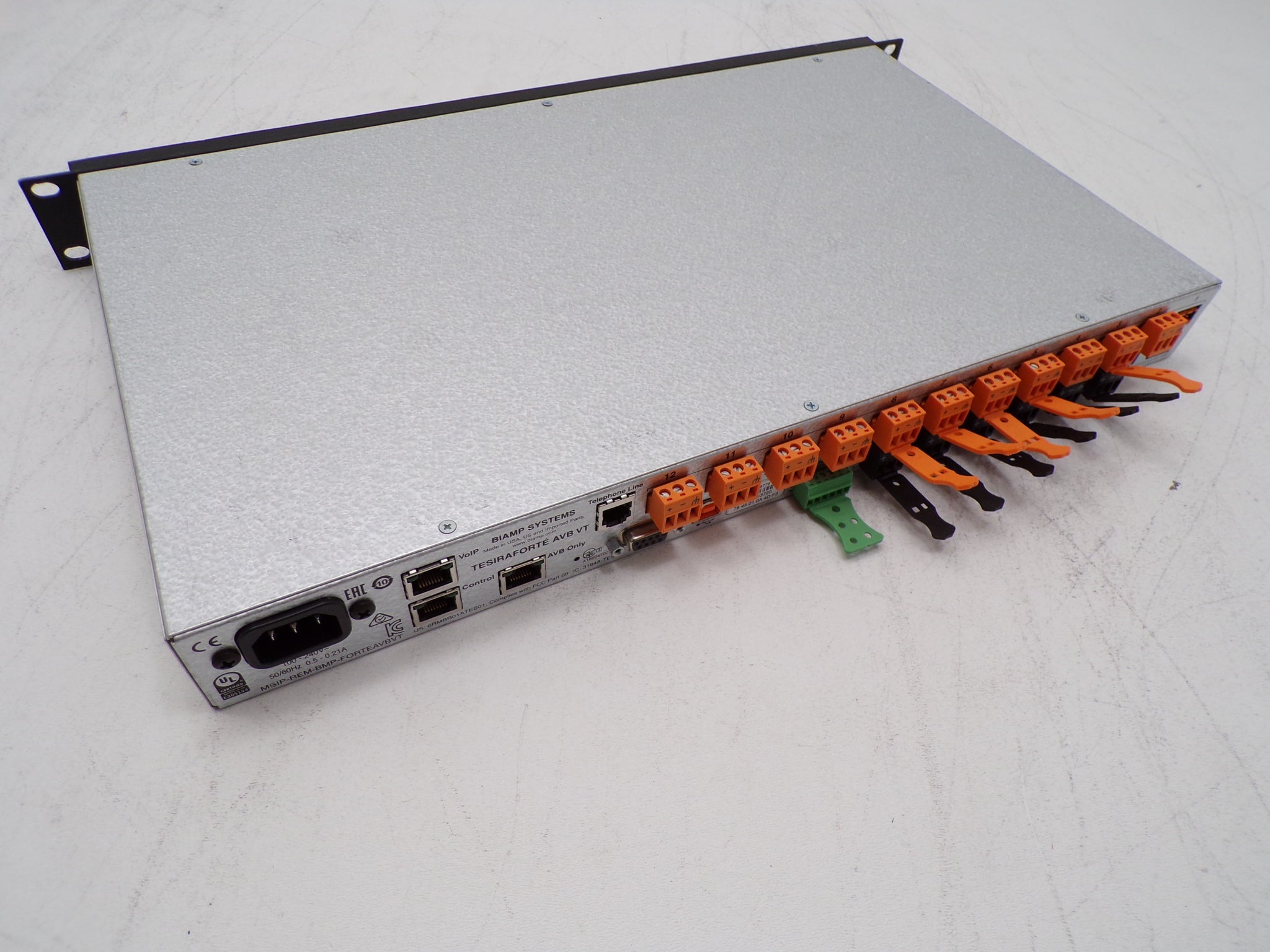

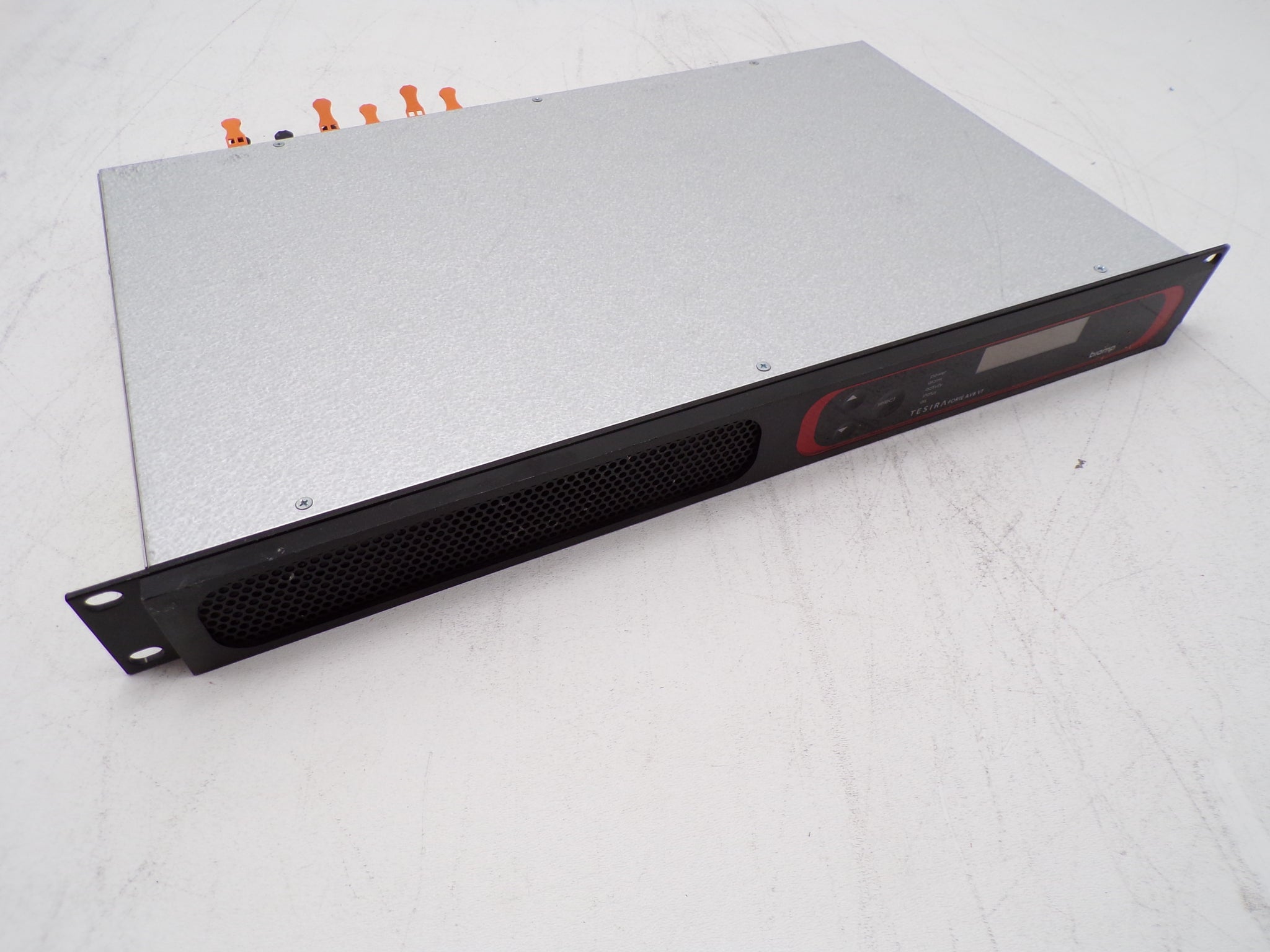

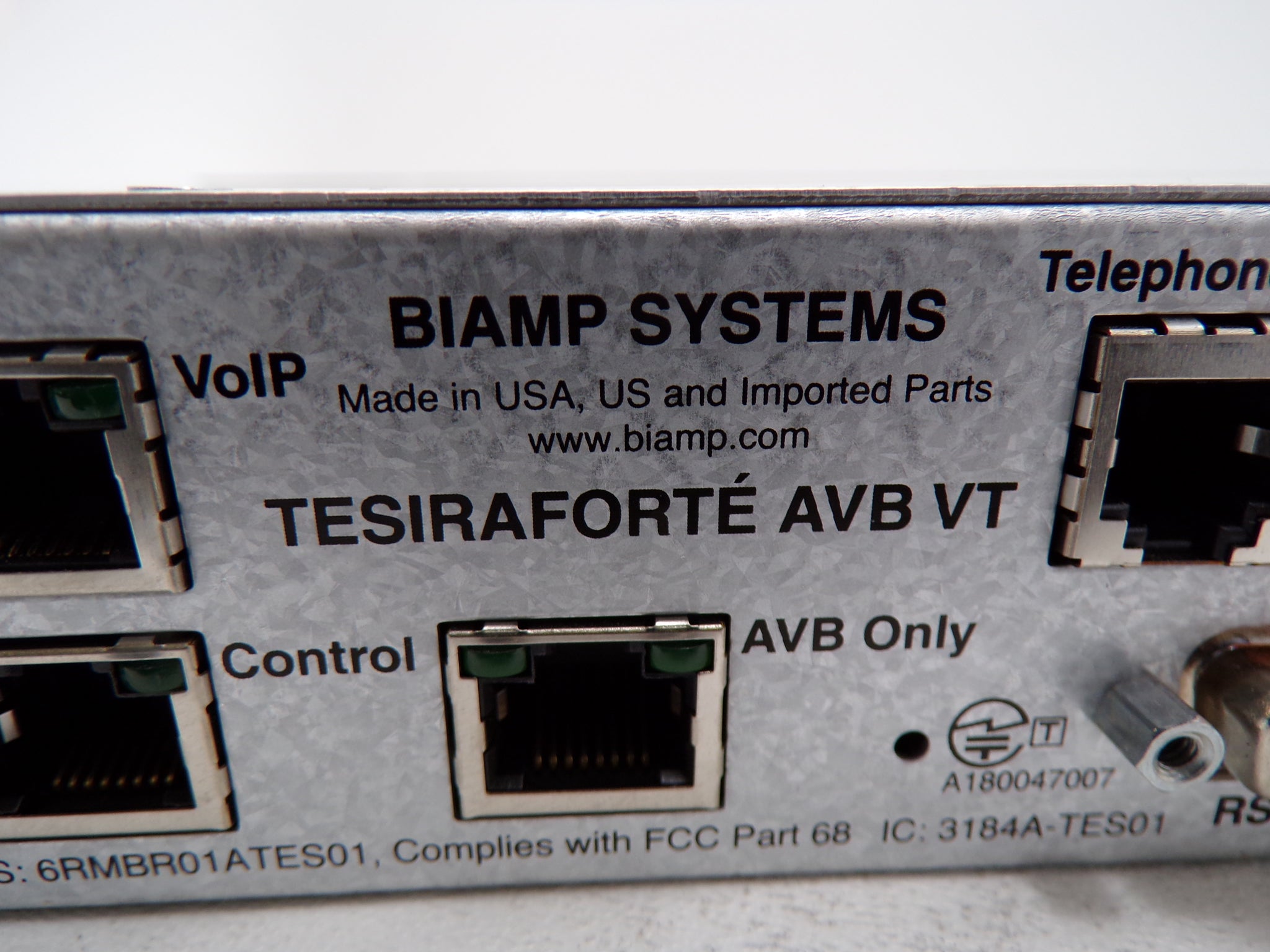

BIAMP Systems TESIRAForte AVB VT

Biamp Systems TESIRAForte AVB VT

Frequency Response:
20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
THD+N (22Hz to 22kHz):
0dB gain, +4dBu input: < 0.006%
54dB gain, -50dBu input: < 0.040%
EIN (no weighting, 22Hz to 22kHz): < -125dBu
Dynamic Range (in presence of signal)
22Hz to 22kHz, 0dB gain: > 108dB
Input Impedance (balanced): 8kΩ
Output Impedance (balanced): 207Ω
Maximum Input: +24dBu
Maximum Output (selectable): +24dBu, +18dBu, +12dBu,
+6dBu, 0dBu, -31dBu
Input Gain Range (6dB steps): 0-66dB
Overall Dimensions:
Height: 1.75 inches (44 mm)
Width: 19.0 inches (483 mm)
Depth: 10.5 inches (267 mm)
Weight: 8 lbs (3.63 kg)
Phantom Power: +48VDC (7mA/input)

Crosstalk, channel to channel, 1 kHz:
0dB gain, +4dBu input: < -85dB
54dB gain, -50dBu input: < -75dB
Sampling Rate: 48kHz
A/D - D/A Converters: 24-bit
Power Consumption:
100-240VAC 50/60Hz: < 35W
USB:
Bit Depth: 16- or 24-bit
Number of Channels: up to 8
Sample Rate: 48kHz
Environment:
Ambient Operating
Temperature Range: 32-104° F (0–40° C)
Humidity: 0–98%, non-condensing
Altitude: 0-6,600 feet (0–2000 Meters) MSL
Compliance:
FCC Part 15B (USA)
FCC Part 68 (USA)
Industry Canada CS-03 (Canada)
CE marked (Europe)
UL und C-UL listed (USA and Canada)
RCM (Australia)
RoHS Directive (Europe)
