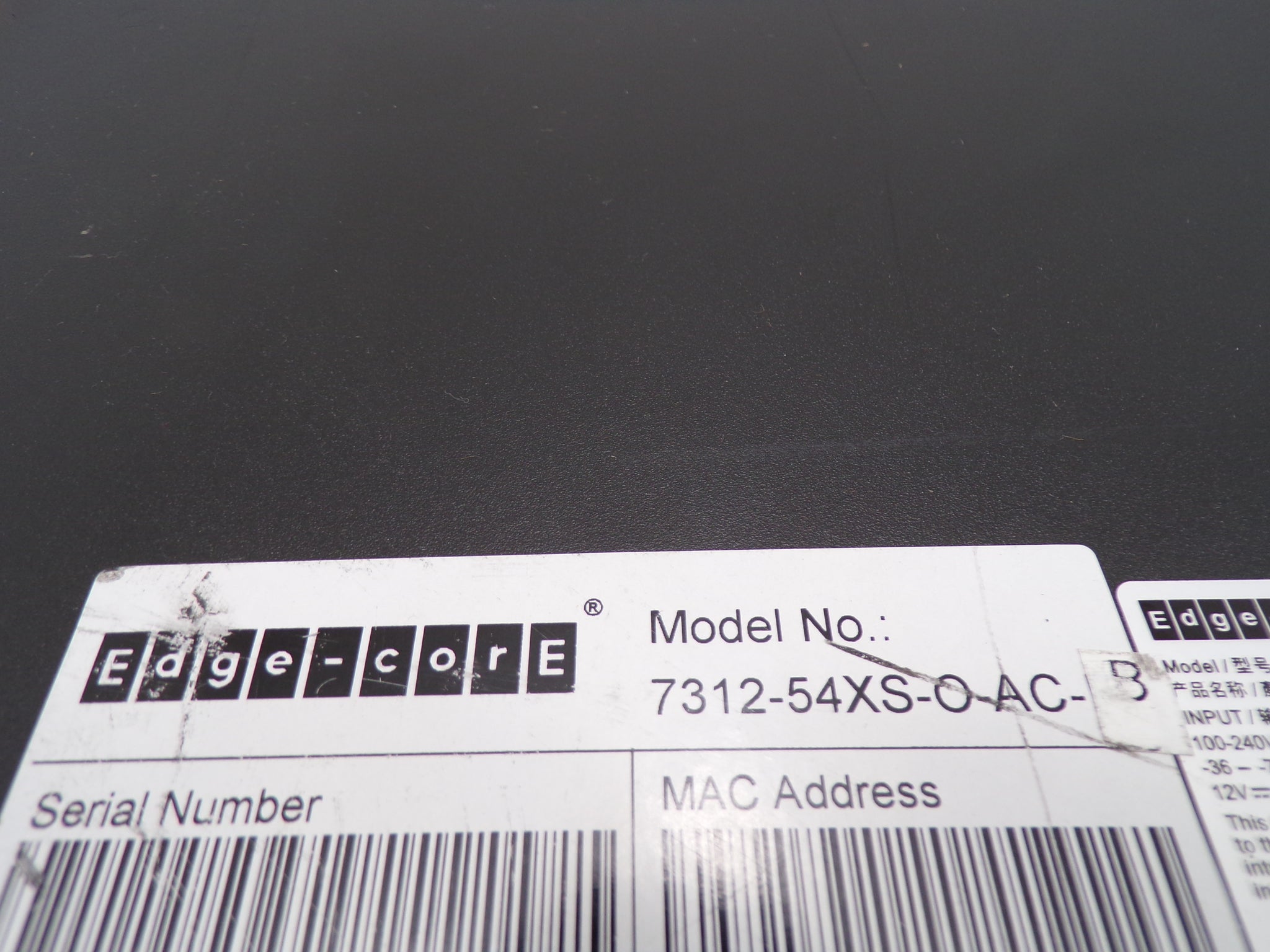

Edge-Core 7312-54XS-O-AC-B

  • $3,495.00
    Unit price per

Used: 6 available

Edge-Core 7312-54XS-O-AC-B 25GbE Data Center Switch Bare-Metal Hardware

The Edgecore AS7312-54XS switch is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a
compact 1RU form factor, the switch provides line-rate L2 and L3 switching across the 48x 25GbE SFP28 & 6x100GbE QSFP28, supporting up to 48 x 10/25 GbE, 6 x 40/100 GbE connections. The AS7312-54XS can be deployed as a TOR switch supporting 10/25 GbE to servers with 40/100 GbE uplinks, or as a spine switch supporting 40/100 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE) which supports the installation of compatible Network Operating System software, including the open source options
Open Network Linux and OpenSwitch, plus commercial NOS offerings.

Key Features and Benefits
■ Cost-effective, bare-metal switch infrastructure for data center fabric.
■ Deploy as Top-of-Rack switch supporting 10 or 25 GbE to servers, with 40 or 100 GbE uplinks.
■ Deploy as spine switch supporting 10, 25, 40, or 100 GbE ToR and spine interconnects.
■ 48 x 25G SFP28 plus 6 x 100G QSFP28 ports, each SFP28 supporting 1 x 10 or 25 GbE and each QSFP28
supporting 1 x 100G or 1 x 40G.
■ Layer 2 or Layer 3 forwarding of 3.6 Tbps full duplex.
■ Supports hot/cold aisle with port-to-power and power-to-port airflow SKUs.

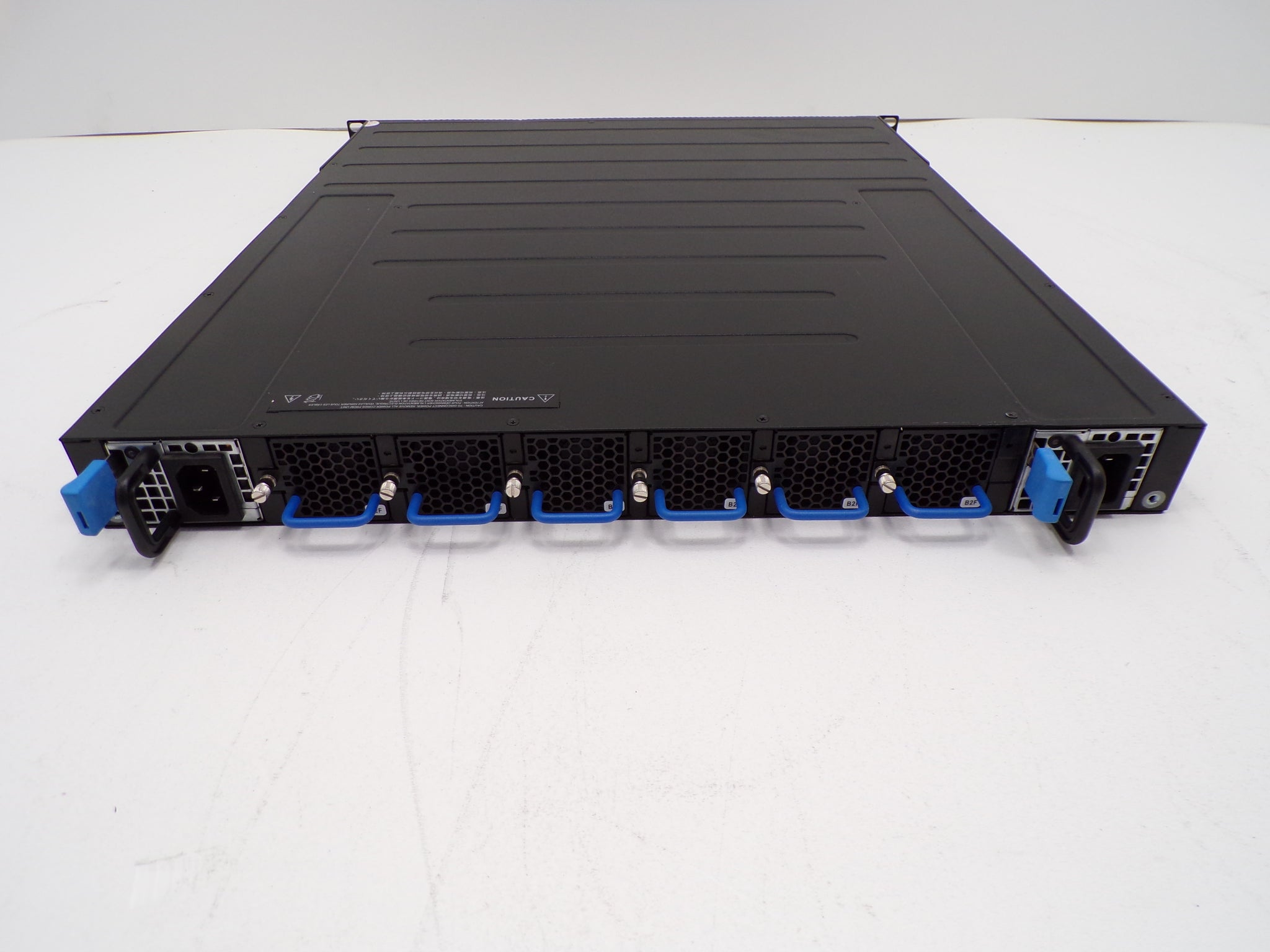

■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or -48V DC or 12V DC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Bare-Metal hardware switch pre-loaded with diagnostics software and with Open Network Install Environment
(ONIE) for automated loading of compatible open source and commerical NOS offerings.
Compatible with Open Network Linux (ONL), the open-source, OCP reference NOS.
Compatible with Cumulus® Linux® r3.6 and later version.
Compatible with PicOS™ from Pica8 Inc.
Compatible with SnapRoute CN-NOS, Cloud Native - NOS software.
Compatible with Netvisor ONE Network operating system from Pluribus Networks
