Extreme 16175

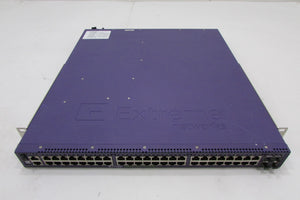

16175 EXTREME NETWORKS SUMMIT X450-G2-48P-GE4 ETHERNET SWITCH W/ FRONT TO BACK AIRFLOW AND 1X 715W AC PWR
X450-G2-48P-GE4-BASE 800597-00-10

General
Device Type Switch - 48 ports - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
Performance Aggregate switching bandwidth: 188 Gbps
Forwarding performance: 139.9 Mpps
Latency (64-byte packets): 4 µs
Capacity Virtual interfaces (VLANs): 4094
QoS hardware queues per port: 8
MAC Address Table Size 68K entries
Jumbo Frame Support 9216 bytes
Features Traffic shaping, DoS attack prevention, CLEAR-Flow Security Rules Engine, 4MB packet buffer
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
Processor X MIPS: 1 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Status Indicators Port status, power, fan
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 1000Base-X SFP
1 x console RJ-45 management
1 x management (Gigabit LAN) RJ-45
1 x USB 2.0 Type A
2 x network stack device QSFP

Overview
The Summit X450-G2 switches are highly effective campus edge switches with available IEEE 802.3at PoE-plus power to support 802.11ac wave 2 Access Points, full motion cameras and other POE+ devices. The Summit X450-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. ExtremeXOS also supports advanced role-based policy functionalities on select Summit switches including the Summit X450-G2. Role-based policy establishes a secure framework where every user receives a predetermined set of rules for accessing the network based on their role in the organization.

ExtremeXOS operating system - robust, modular operating system helps ensure uptime with process isolation, monitoring, and automatic restart
Role-based policy - native capability to support the role-based policy features in ExtremeXOS
QoS - advanced traffic management helps ensure quality of experience for converged applications
IEEE 802.3at PoE-plus - connect and power Wi-Fi access points, cameras, and IP phones
Comprehensive security - identity-aware security allows fine-grained insight and control
High-performance stacking - reduces management overhead by combining up to 8 switches into a single logical unit
Redundant power - available redundant power supply contributes to better reliability
Specifications
The Summit X450-G2 switches are highly effective campus edge switches with available IEEE 802.3at PoE-plus power to support 802.11ac wave 2 Access Points, full motion cameras and other POE+ devices. The Summit X450-G2 series is based on Extreme Networks revolutionary ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. ExtremeXOS also supports advanced role-based policy functionalities on select Summit switches including the Summit X450-G2. Role-based policy establishes a secure framework where every user receives a predetermined set of rules for accessing the network based on their role in the organization.
