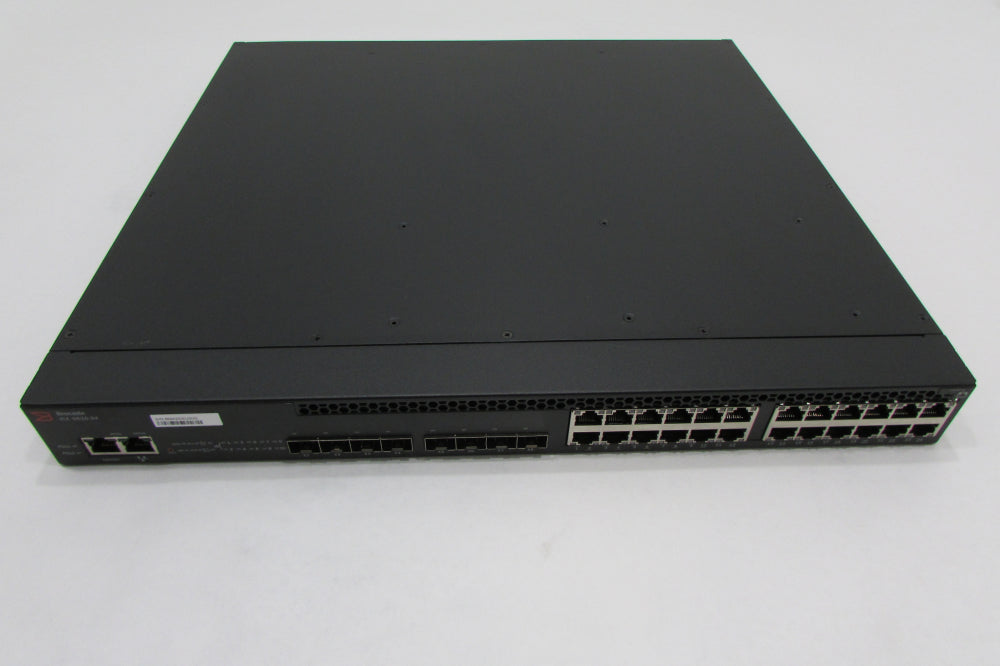

Brocade ICX6610-24-I

$150.00
Unit price per

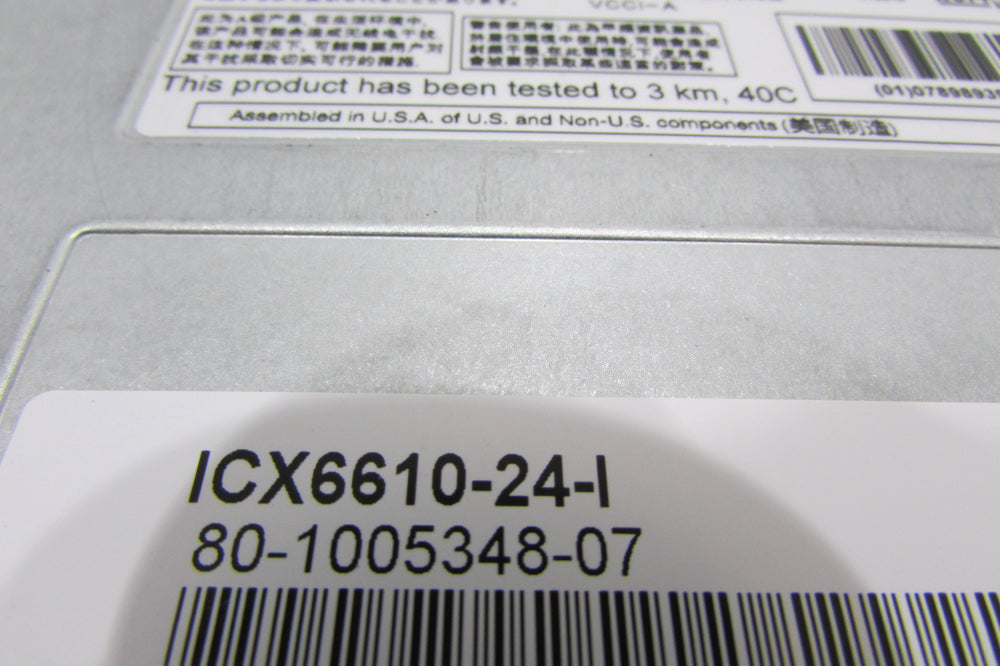

Brocade ICX6610-24-I, 80-1005348-07 24-port 1 GbE RJ45, plus 8×1 GbE SFPP uplink ports (upgradable to 10 GbE). 4×40 GbE QSFP stacking ports.

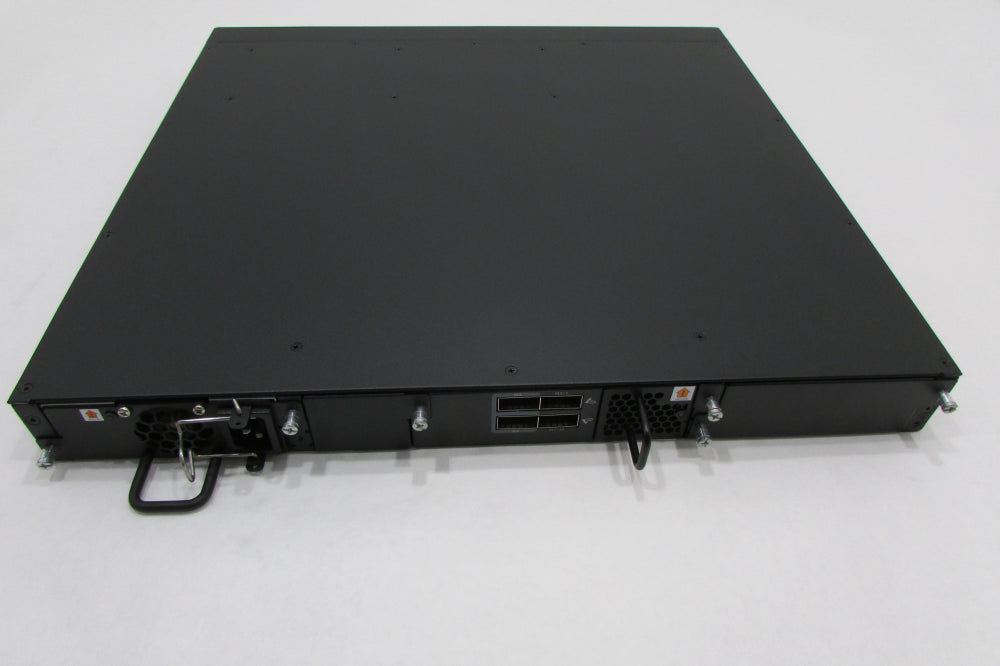

1 power-supply-side intake, hot-swappable fan assembly and 250 W power supply. Base software.

Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 8 x SFP+
Performance Switching capacity: 528 Gbps
Forwarding performance: 396 Mbps
Capacity Virtual interfaces (VLANs): 4096
Spanning Tree Protocol instances: 254
Jumbo Frame Support 9000 bytes
Max Units In A Stack 8
Authentication Method Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS
MAC Address Table Size 32K entries
Max Units In A Stack 8
Authentication Method RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Encryption Algorithm AES
Routing Protocol Static IPv4 routing, static IPv6 routing
Jumbo Frame Support 9000 bytes

NETWORKING
MAC Address Table Size 32K entries
Subcategory network hubs and switches
Subtype Gigabit Ethernet
Form Factor desktop, rack-mountable
Type Switch
Stackable stackable
Max Units In A Stack 8
Advanced Switching Layer 3
Features Access Control List (ACL) support, DHCP relay, LLDP support, Link Aggregation Control Protocol (LACP), Link Fault Signaling (LFS), MAC address filtering, MLD snooping, Metro Ring Protocol (MRP) support, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), DHCP server, Quality of Service (QoS), Remote Fault Notification (RFN), SNTP support, Uni-Directional Link Detection (UDLD), VLAN support, Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Redundancy Protocol (VSRP) support, Weighted Round Robin (WRR) queuing, auto-uplink (auto MDI/MDI-X), flow control, DiffServ support, front to back airflow, port mirroring, sFlow, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic VLAN Support (GVRP), High Availability, IGMP snooping, IPv6 support
Compliant Standards IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ae, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Jumbo Frame Support 9000 bytes
Ports Qty 24
Manageable Yes
Routing Protocol static IPv4 routing, static IPv6 routing
Remote Management Protocol CLI, HTTP, RMON, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP, Telnet

POWER DEVICE
Nominal Voltage AC 120/230 V
Frequency Required 50/60 Hz
Power Consumption Operational 120 Watt
Type internal power supply
Hot-Plug hot-plug

INTERFACE PROVIDED
Type network stack device
Interface Ethernet 10Base-T/100Base-TX/1000Base-T, console
Qty 1, 24, 4, 8
Connector Type QSFP, RJ-45, SFP/SFP+
Comments management
