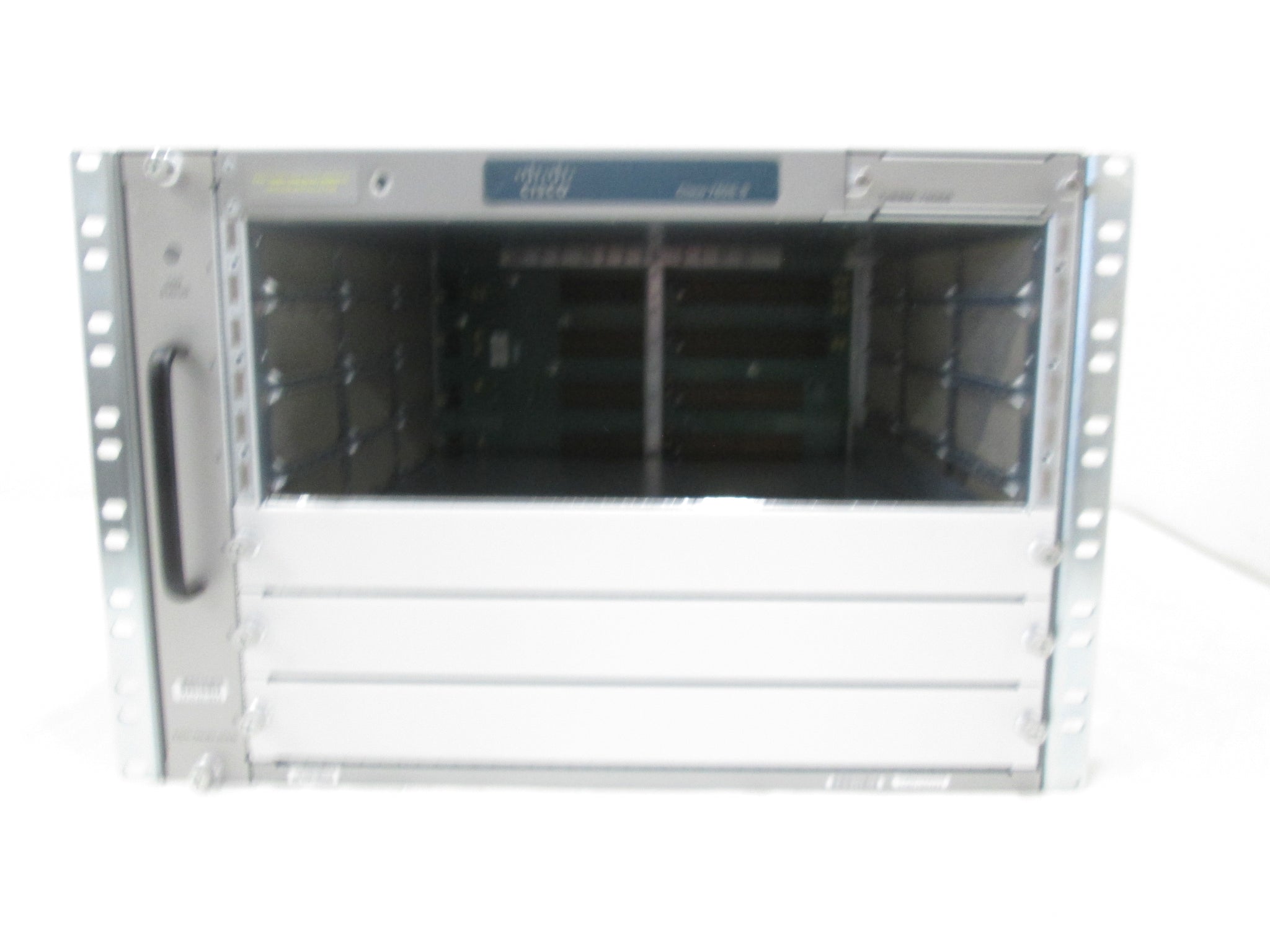

Cisco Cisco7606-S
Cisco 7606-S IPMP500ARA 800-27638-04 68-2862-02
6 Slot chassis
The Cisco 7606-S Router is a compact, high-performance router designed in a 6-slot form factor for deployment at the network edge, where robust performance and IP/Multiprotocol Label Switching (MPLS) services are necessary to meet the requirements of both enterprises and service providers. It enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7606-S also delivers WAN and metropolitan-area network (MAN) networking solutions at the enterprise edge.
With a powerful combination of speed and services in a compact form factor, the Cisco 7606-S is an outstanding choice for multiple applications. Whether deployed as a high-speed WAN aggregator, as a device for peering, as a residential broadband services aggregator, or as a device for Metro Ethernet aggregation and uplink, the Cisco 7606-S meets requirements for redundancy, high availability, and rack density. In the point-of-presence (POP) data center or the metropolitan network, the Cisco 7606-S sets new standards as part of the industry-leading Cisco 7600 Series Routers
Cisco 7606-S Chassis Features
• Seven-RU (12.25-in.) compact chassis, up to 6 chassis per 7-foot rack
• Two interface slots plus 2 supervisor-mounted Gigabit Ethernet ports (gigabit interface controllers [GBICs])
• Network Equipment Building Standards (NEBS) Level 3 compliance
• Route processor protection capability: 1 + 1

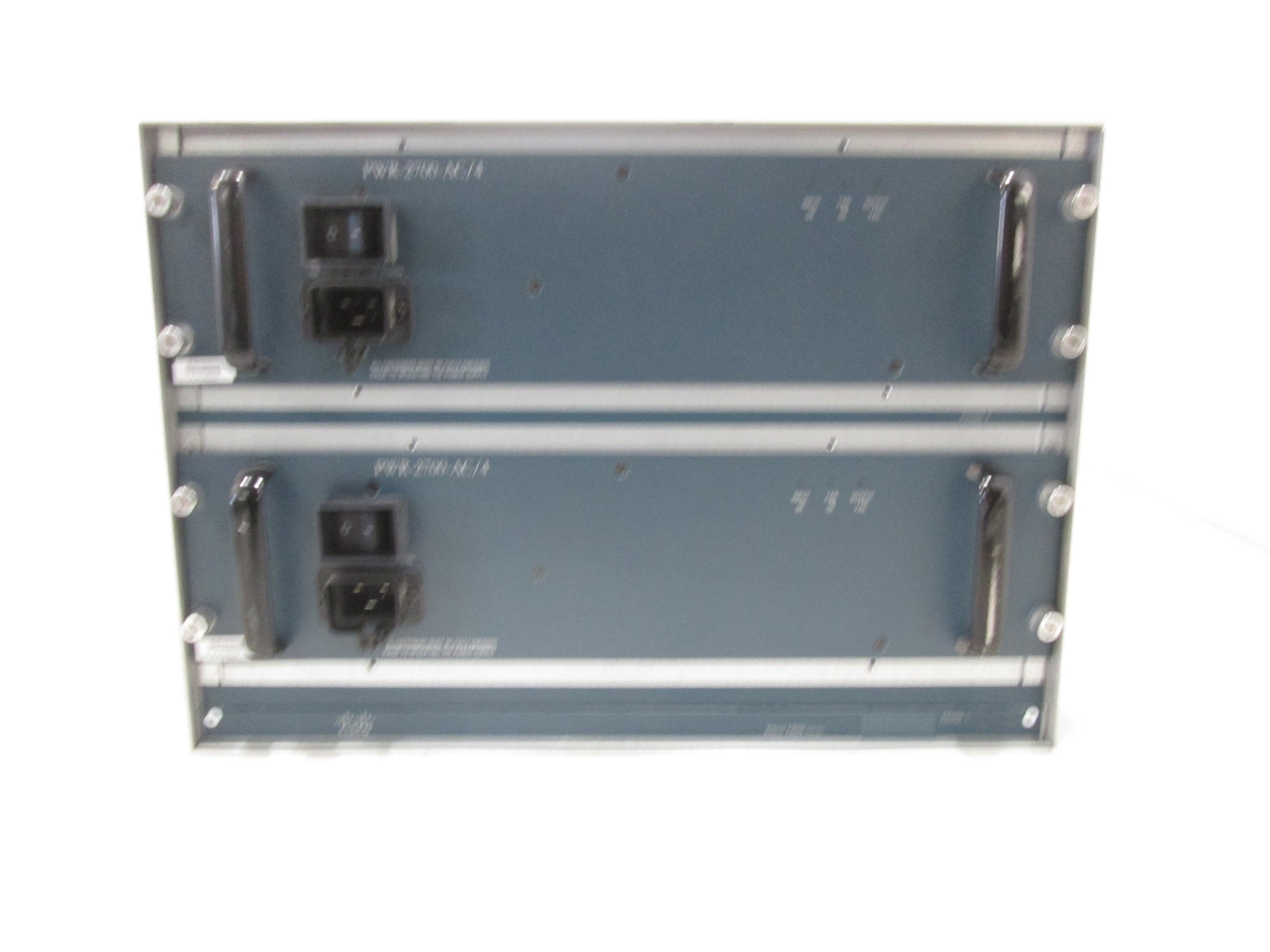

• Power-supply protection option, AC or DC: 1 + 1
• Single-side connection management for both interface and power terminations
• Side-to-side airflow
Cisco 7606-S System Features
• Up to 240-Mpps distributed forwarding rate (requires distributed forwarding cards [DFCs])
• Total throughput: 480 Gbps
