Foundry HFCT-721XPD

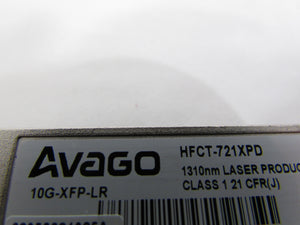

AVAGO HFCT-721XPD 10G-XFP-LR 1310nm XFP TRANSCEIVER
The 1310nm XFP transceiver is a high performance, cost effective module for serial optical data communications applications specified for signal rates of 10.30Gb/s to 11.3 Gb/s. It is compliant to XFP MSA Rev 4.5. The module is designed for single mode fiber and operates at a nominal wavelength of 1310nm. The transmitter section incorporates Avago Technologies’ uncooled directly modulated 1310nm distributed feedback laser (DFB). The receiver section uses Avago Technologies’ MOVPE grown planar TEDET PIN photodetector for low dark current and excellent responsivity. Integrated Tx and Rx signal conditioners provide high jitter-tolerance for full XFI compliance. The internally AC coupled high speed serial I/O simplifies interfacing to external circuitry. The electrical interface is made using an industry standard 0.8mm pitch 30-pin right angle connector. Optical con- nection is made via the duplex LC connector.
Applications
•Fibre Channel Switches
•Host Bus Adapter Cards
•Mass Storage System and Server I/O
•Ethernet Switches
• Core Routers
