Juniper PD-1CE-CFP-FPC4

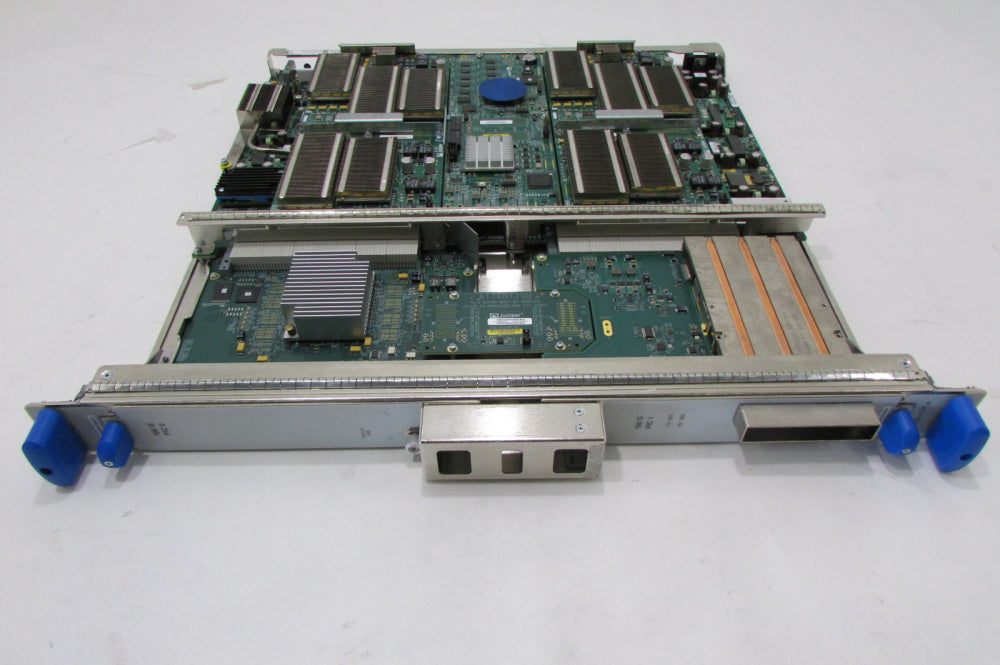

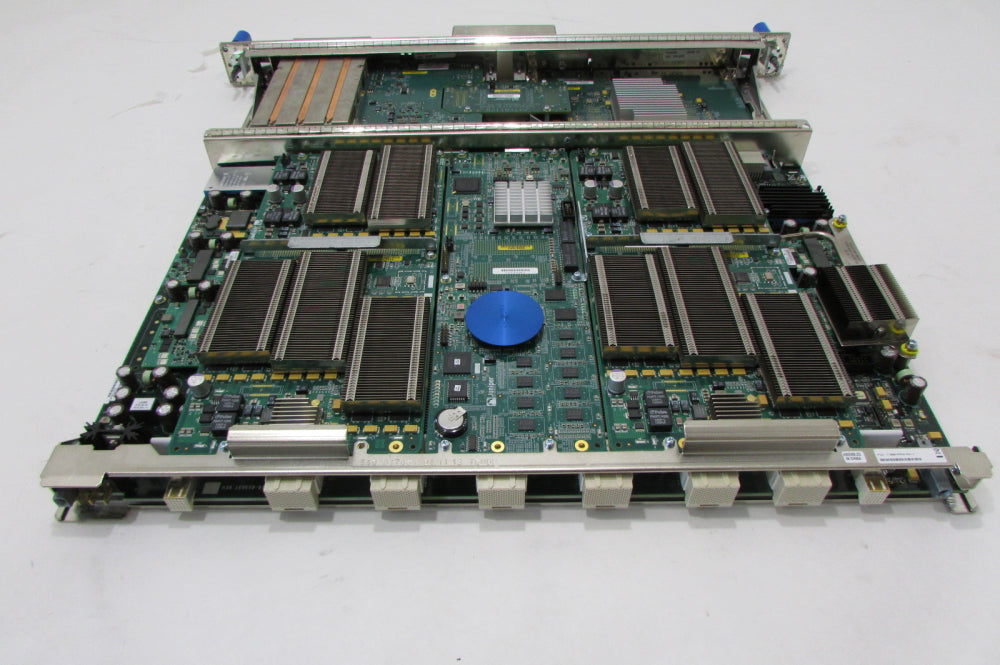

Juniper PD-1CE-CFP-FPC4 Assembled interface composed of one 100Gb PIC card set and one T1600-FPC4-ES.

One 100-Gigabit Ethernet port

Power requirements for PD-1CE-CFP-FPC4 (PIC and FPC): 9.48 A @48 V (455 W)

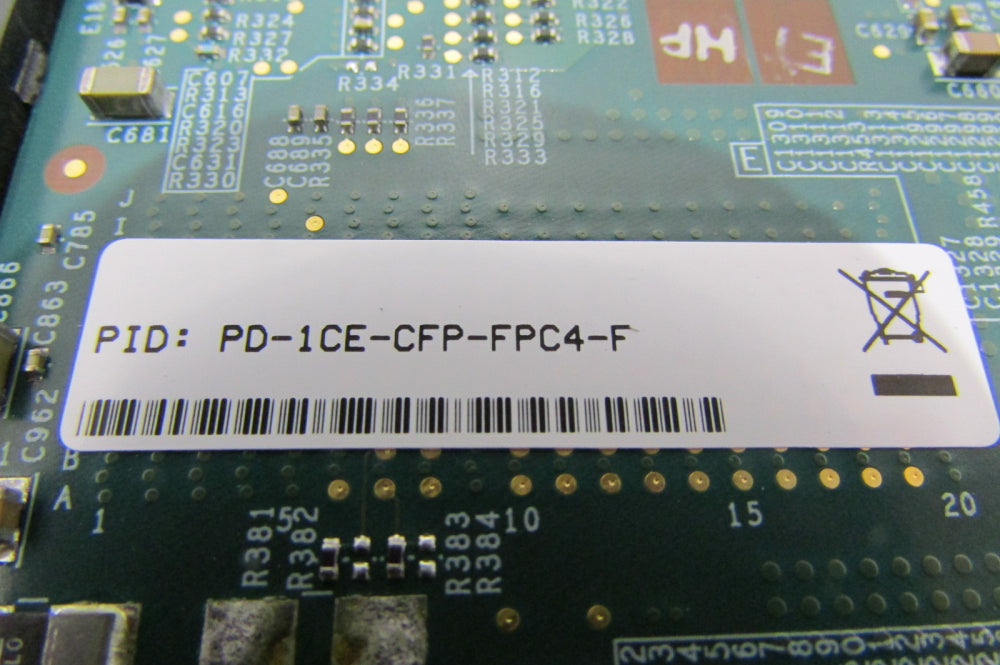

Model number: PD-1CE-CFP-FPC4

PIC 0 and PIC 1 are connected by a bridge board

There are two physical interfaces when the 100-Gigabit Ethernet PIC is online. Each physical interface represents one of two internal 50-Gigabit Ethernet Packet Forwarding Engines (PFEs) in the FPC. PFE0 is physical interface 0, PFE1 is physical interface 1.

The following example shows the CLI representation of physical interface. The interface type is et, the FPC slot number is x, the PIC slot is always 0, and the ports for the PFEs are 0:0 for PFE0 and 0:1 for PFE1.
