Brocade ICX6430-24

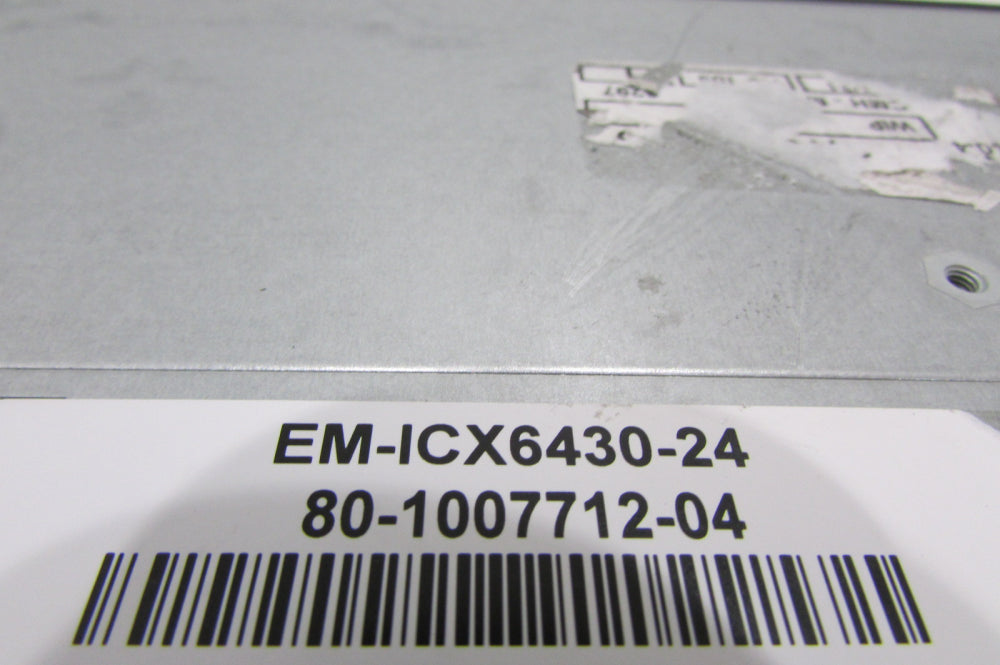

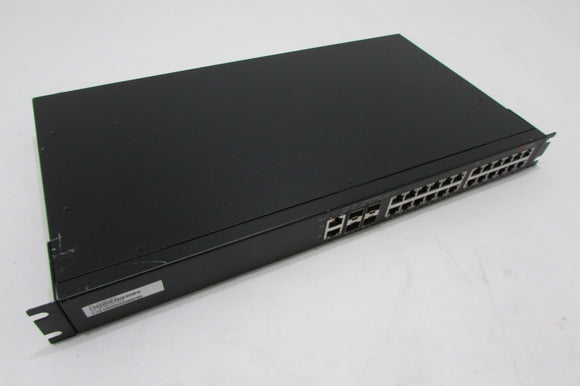

Brocade ICX6430-24 24-port 1 GbE switch, 4×1 GbE SFP uplink/stacking ports, fanless Switch EM-ICX6430-24

General
Device Type: Switch - 24 ports - managed - stackable
Enclosure Type: Desktop, rack-mountable, wall-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000
Performance: Switching capacity: 56 Gbps Forwarding performance: 42 Mbps
Capacity: Virtual interfaces (VLANs): 4096 Spanning Tree Protocol instances: 32
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Max Units In A Stack: 4
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm: AES
Authentication Method: RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features: Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)

Interfaces: 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management Network stack device: 4 x SFP (mini-GBIC)
