Cisco CTI-3610-GWAM-K9
Cisco CTI-3610-GWAM-K9 AM GW 3610 - Advanced Media Gateway 3610 10HD/20VGA calls, 800-35123-01 AM-GW-3610
The Cisco TelePresence Advanced Media Gateway 3610 (Cisco AM GW 3610) is a high-definition (HD) media gateway that enables businesses to get better value from their existing video and collaboration infrastructure. Combined with the Cisco TelePresence Video Communication Server (Cisco VCS), the Cisco AM GW 3610 is the first and most comprehensive network-centric solution that enables true HD communication between Microsoft Office Communications Server 2007 R2 and Microsoft Lync Server users and standards-based telepresence and video conferencing devices. Individuals and teams can now use familiar business tools to collaborate in high definition across the enterprise.
Design features
• Cisco AM GW 3610 is compatible with Microsoft Office Communications (MOC) Server 2007 R2 and Microsoft Lync Server
• Cisco AM GW 3610 is compatible with all standards-compliant video conferencing and telepresence devices
• Cisco AM GW 3610 has an easy-to-use, versatile management interface
• Cisco AM GW 3610 offers comprehensive wideband audio support
• Cisco TelePresence ClearVision technology (ClearVision) enhances resolutions by up to 4 times, enabling less-powerful PCs and video conferencing endpoints to participate in calls at higher definitions

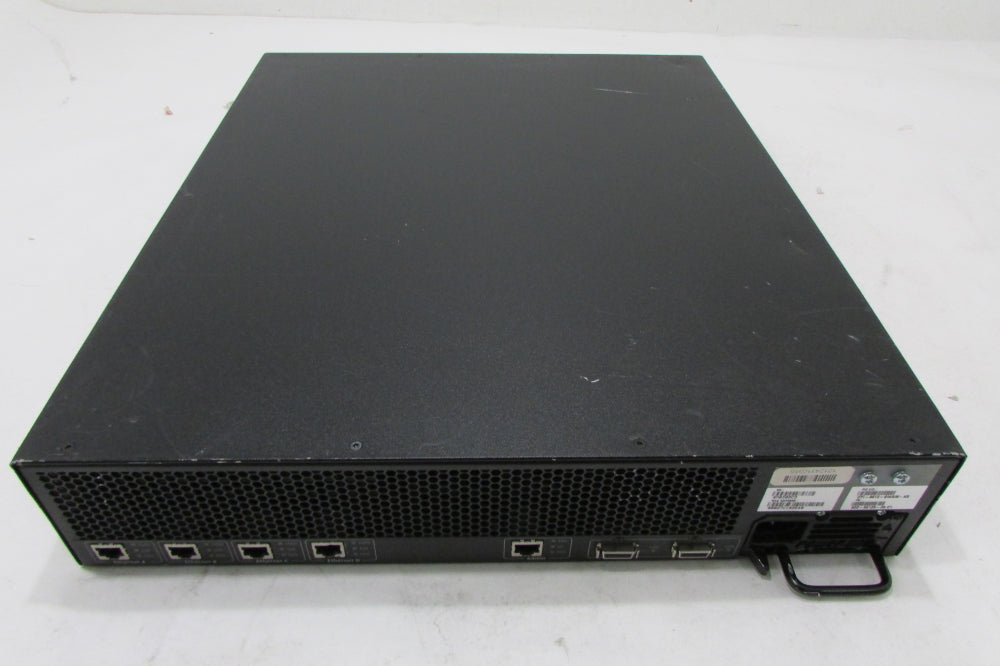

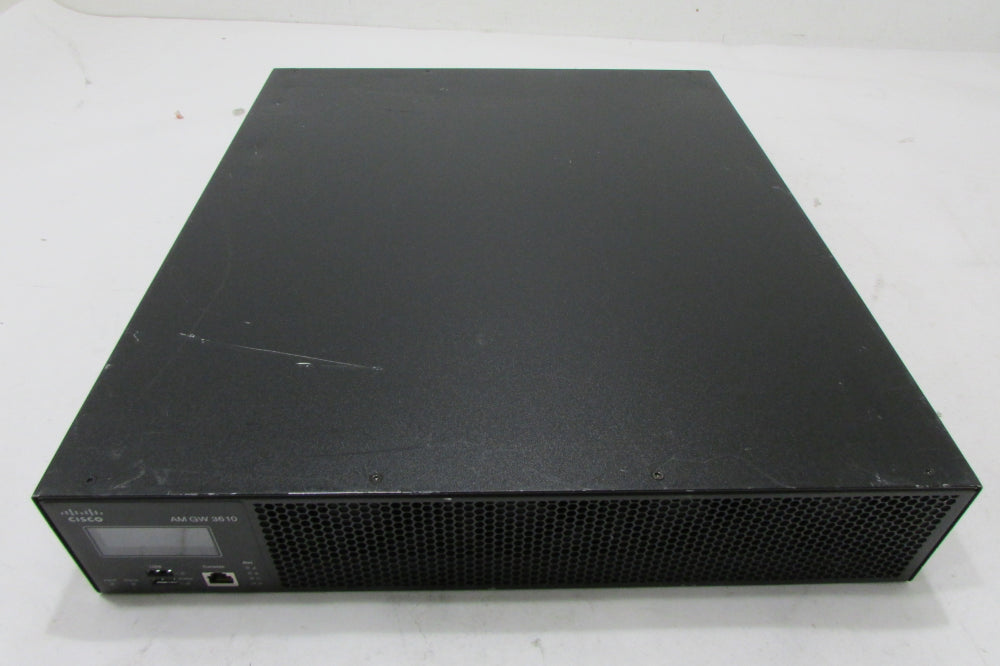

• The unit is compact - it is 2 rack units (2RU) tall and 19-inch rack-mountable
Application features:
• Cisco TelePresence Universal Port technology helps ensure that each participant receives the best possible experience
• Cisco AM GW 3610 offers full transcoding for every call
• Large enterprises can increase their available capacity by stacking multiple Cisco AM GW 3610 units
• The gateway connects to all standards-based video conferencing devices, including endpoints, multipoint control units (MCUs), recording and streaming servers, and telepresence servers
Performance features:
• Up to 10 simultaneous HD calls
• Up to 20 simultaneous VGA calls
• Constant high capacity in selected HD or VGA mode
• Transcoding and transrating on all calls
• Video resolution up to HD 720p at 30 frames per second (fps)
• Content sharing to MOC and Lync at up to 720p at 30fps
Video devices supported
• Microsoft Office Communicator 2007 R2 clients
• Microsoft Lync clients
• Communicator for Mac 2011 clients
• H.323 video devices
• Session Initiation Protocol (SIP) video devices
• Supported devices: Endpoints, MCUs, gateways, and recording and streaming devices
Video standards:
• RT Video, H.261, H.263, H.263+, and H.264
Video resolution for video conferencing devices:
• From QCIF to 720p (1280 x 720)
• 4:3 and 16:9 aspect ratios
Video resolution for Microsoft Office Communicator and Lync:
• CIF, VGA, and 720p
Frame rates:
• Up to 30 fps
Audio standards:
• G.711, G.722, G.723.1, G.728, G.729, MPEG-4 AAC-LC, MPEG-4 AAC-LD, Polycom Siren7/G722.1, Polycom Siren14, and G.722.1 Annex C
Protocols:
• SIP, FTP, Real-Time Transport Protocol (RTP), HTTP, Dynamic Host Configuration Protocol (DHCP), Simple Network Management Protocol (SNMP), and Network Time Protocol (NTP)
Bandwidth:
• Maximum bandwidth: up to 2 Mbps per call
