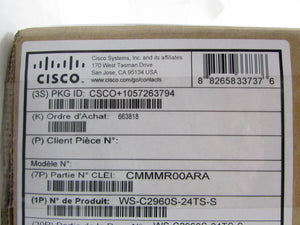

Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S
Cisco WS-C2960S-24TS-S

Cisco WS-C2960S-24TS-S

Used: 1 available

Cisco WS-C2960S-24TS-S, Catalyst 2960S 24 GigE, 2 x SFP LAN Lite Switch


Brand: Cisco Systems
Series: Catalyst 2960-S Series
Model: WS-C2960S-24TS-S
Product Type: Ethernet Switch (with LAN Lite Software)
Form Factor: Rackmount / 1U
Condition: Brand New / Sealed
Lead Time: 7-10 days
Technical Specs:

Ports: 24
Speed: 10/100/1000 Mbps
Forwarding Bandwidth: 50 Gbps
Flash Memory: 64MB
Memory DRAM: 128MB
Max VLANs: 64
VLAN IDs: 4,000
Maximum Transmission Unit (MTU): 9198 bytes
Jumbo Frames: 9216 bytes
Forwarding Rate: 38.7 mpps
Unicast MAC Addresses: 8000
IPv4 IGMP Groups: 256
Mean Time Between Failure (MTBF): 335,014 hours
Remote Management Protocol: RMON 1 , RMON 2 , SNMP 1 , SNMP 2 , SNMP 2c , SNMP 3 , SSH-2 , Telnet , TFTP , HTTP , HTTPS
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3ah , IEEE 802.3u , IEEE 802.3x , IEEE 802.3z
Control Features:
This Cisco Switch Model (WS-C2960S-24TS-S) features 24 ports of Gigabit Ethernet (GbE) 10/100/1000 desktop connectivity with two (2) 1 GbE Small Form-Factor Pluggable (SFP) uplinks

Single IP address management that supports up to 16 switches
Dynamic Trunking Protocol (DTP)
Port Aggregation Protocol (PAgP)
Link Aggregation Control Protocol (LACP)
Automatic media-dependent interface crossover (MDIX)
Unidirectional Link Detection Protocol (UDLD)
Dynamic Host Configuration Protocol (DHCP)
Switching Database Manager (SDM)
Local Proxy Address Resolution Protocol (ARP)
Internet Group Management Protocol (IGMP)
Voice VLAN & Cisco VLAN Trunking Protocol (VTP)
Switch Port Analyzer (SPAN)
Trivial File Transfer Protocol (TFTP)
Network Timing Protocol (NTP)
Cisco Emergency Responder (CER)

Dimensions:

Height: 1.75 inches (4.5 cm)
Width: 17.7 inches (45.0 cm)
Depth: 11.80 inches (30.0 cm)
Weight: 10.0 lbs. (4.5 kg)
Power Requirements:

Voltage: 100/240 VAC
Frequency: 50/60 Hz
Current: 1 to 0.5 A

Power Rating: 0.08 kVA

Measured Power Consumption:
5% Throughput – 36 Watts
100% Throughput – 36 Watts
